Setup

Windows

https://www.terraform.io/downloads

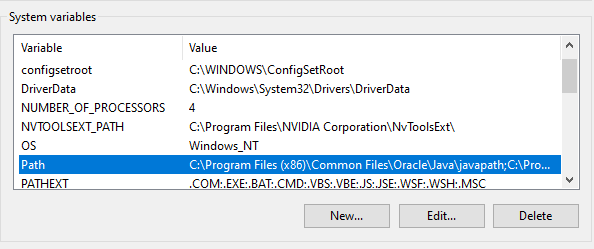

Set Env Path
1. System Variables → Path

Add path to environment

Mac via Homebrew

https://brew.sh/
Copy command
Paste command in Terminal to install Homebrew
Install terraform

brew install terraform

Test Terraform using cmd/terminal

terraform -v

Mac via binary download

https://www.terraform.io/downloads
Unzip file
echo $PATH to see list of locations
move terraform binary to one of the locations
1. Generally use usr/local/bin

Tutorial

Terraform is declarative in nature and therefore we are configuring what we want to see in the cloud instead of how much we want to add/remove from the cloud.

Cloud Provider

Select Cloud to configure (AWS)
https://registry.terraform.io/providers/hashicorp/aws/latest/docs

Configure the Provider and Region

Create a .tf file. E.g. main.tf

# Configure the AWS Provider
provider "aws" {
  region = "ap-southeast-1"
}

Setup Authentication

1. Get Access and Secret Key from Cloud Provider

AWS
Profile Name

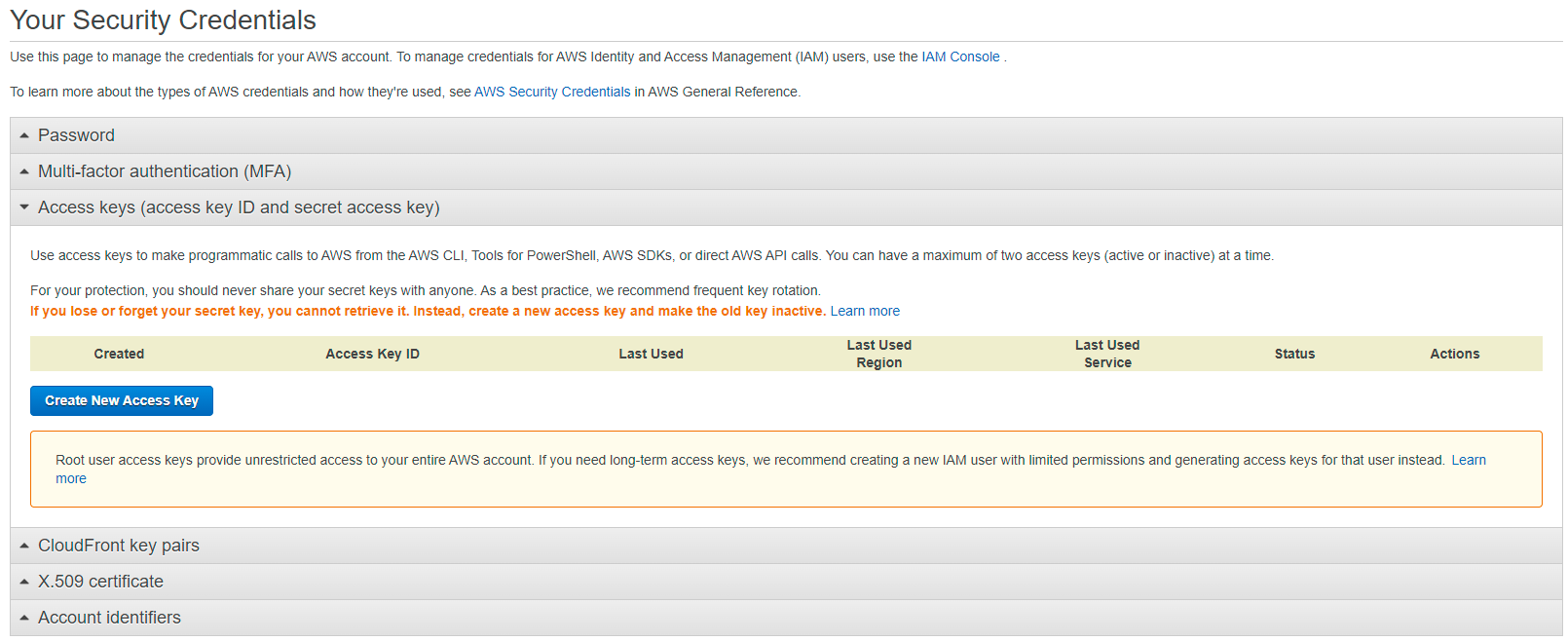

Security Credentials
Access Key Tab

Create New Access Key
Show Access Key
1. This will provide the value for access_key and secret_key
Download Key File as secret_key will not be able to be found anymore after you close the tab

# Configure the AWS Provider
provider "aws" {
  region = "ap-southeast-1"
  access_key = "my-access-key"
  secret_key = "my-secret-key"
}

Create Resources

E.g. Resources includes EC2, etc.

Syntax for creating resources

resource "<provider>_<resource_type>" "<name>" {
  # config options in key value pairs
  key = "value"
  key2 = "value2"
}

Creating EC2 Instance

https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/instance

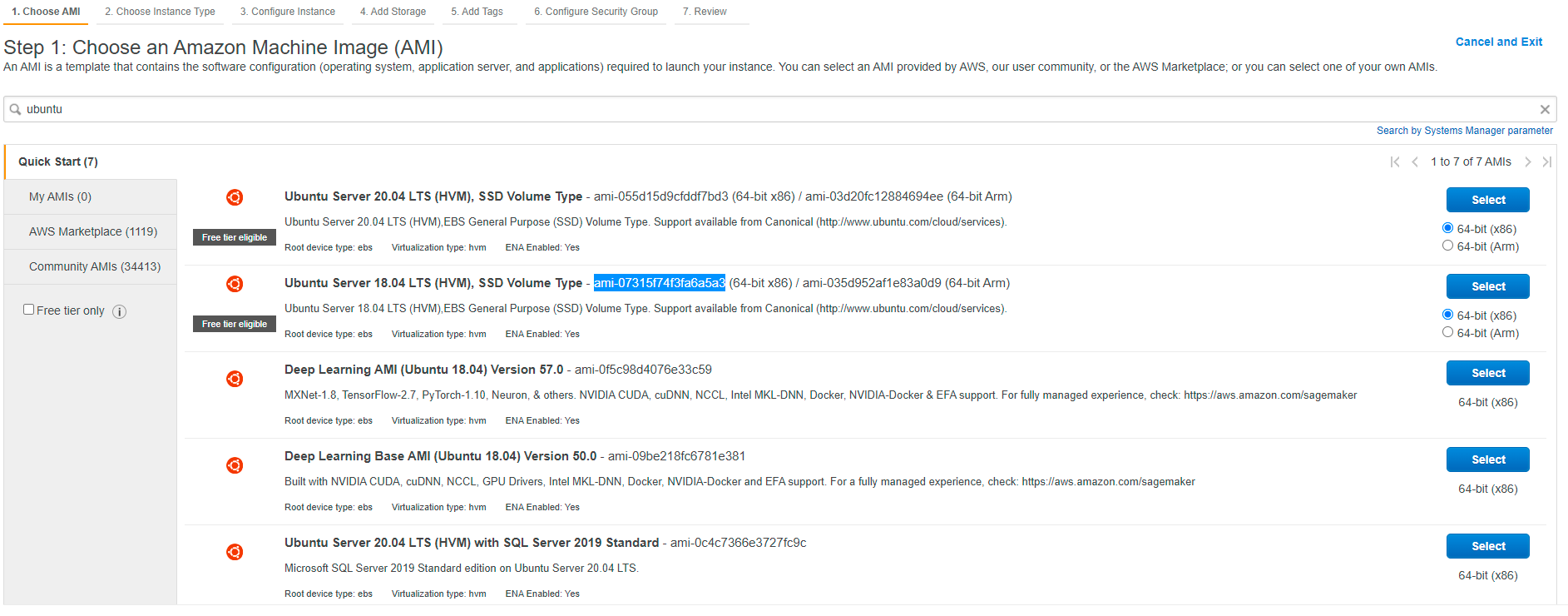

Obtain AMI from AWS to be used in the code

# Configure the AWS Provider
provider "aws" {
  region = "ap-southeast-1"
  access_key = "my-access-key"
  secret_key = "my-secret-key"
}

resource "aws_instance" "my-first-server" {
  ami           = "ami-055d15d9cfddf7bd3"
  instance_type = "t2.micro"

  tags = {
    Name = "ubuntu"
  }
}

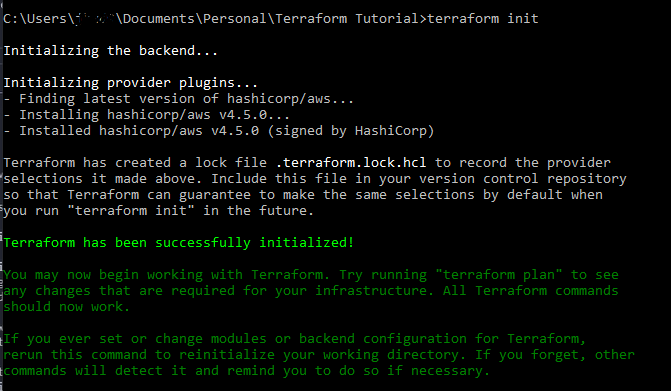

Terraform Init

Looks at the config in .tf files and look for all the providers defined and will download all the plugins required.

Navigate terminal to where the .tf file is

terraform init

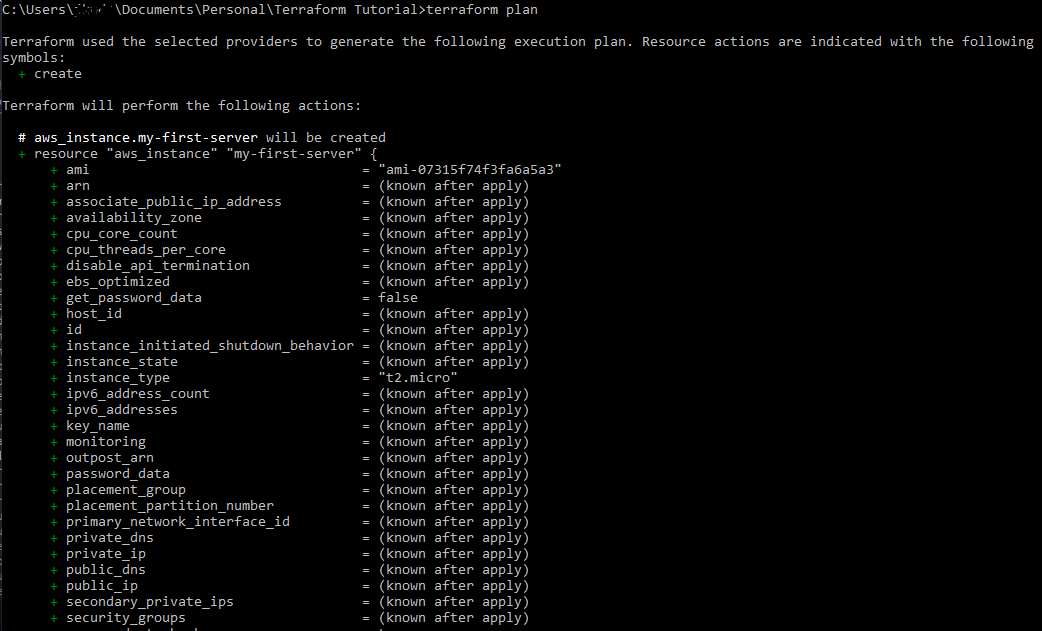

Terraform Plan

Does a dry run of the code and show you all the changes that is going to be applied Delete/Create/Modify any instances.

terraform plan

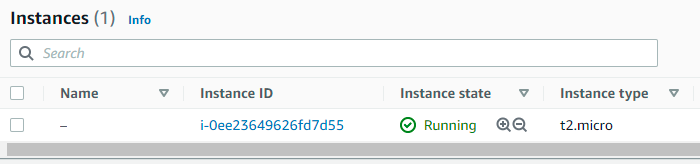

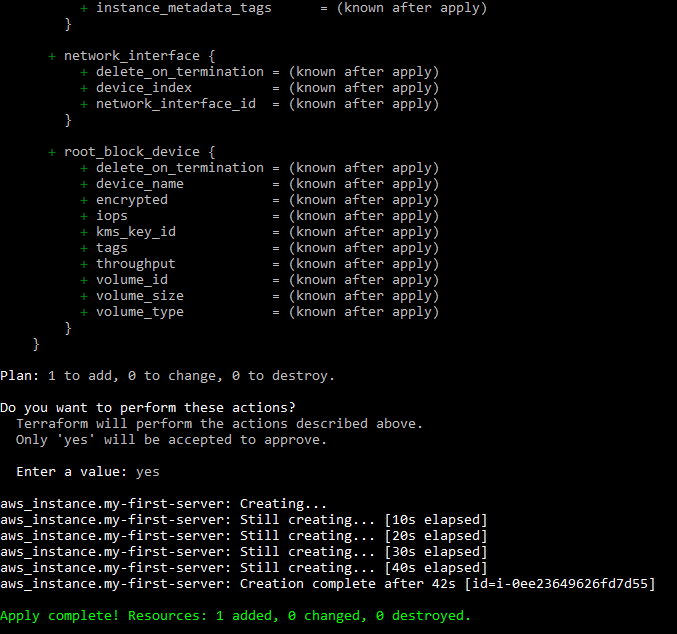

Terraform Apply

Run the code to production.

terraform apply

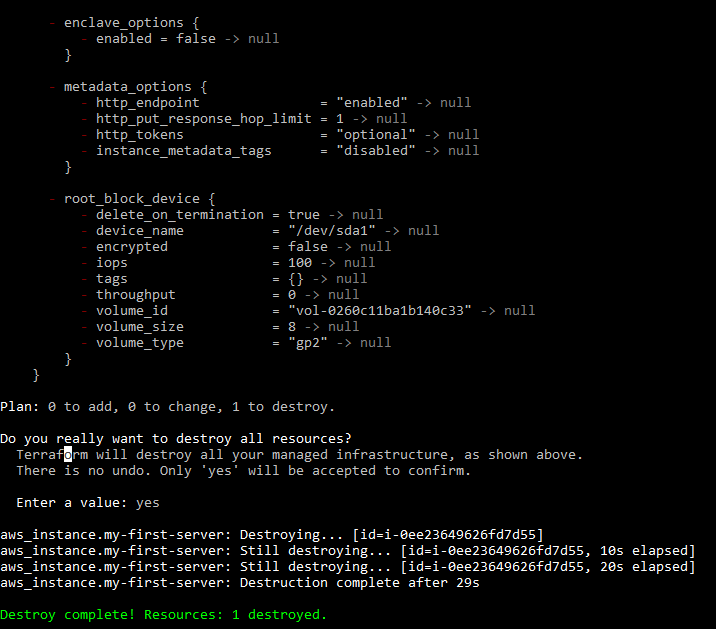

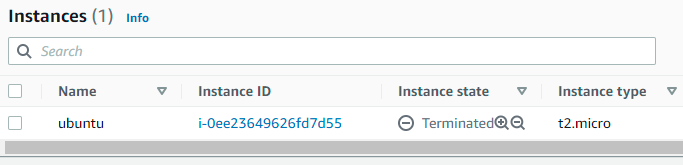

Terraform Destroy

Delete the whole architecture. Usually will not do this and will instead make changes within the file and use terraform apply to add/remove instances from the architecture.

terraform destroy

Destroying specific resource

See the resources that are tracked by terraform terraform state list
Remove the states that you DO NOT want to destroyterraform state rm <resource1> <resource2> <resource3> ...
terraform destroy to destroy the rest of the available states

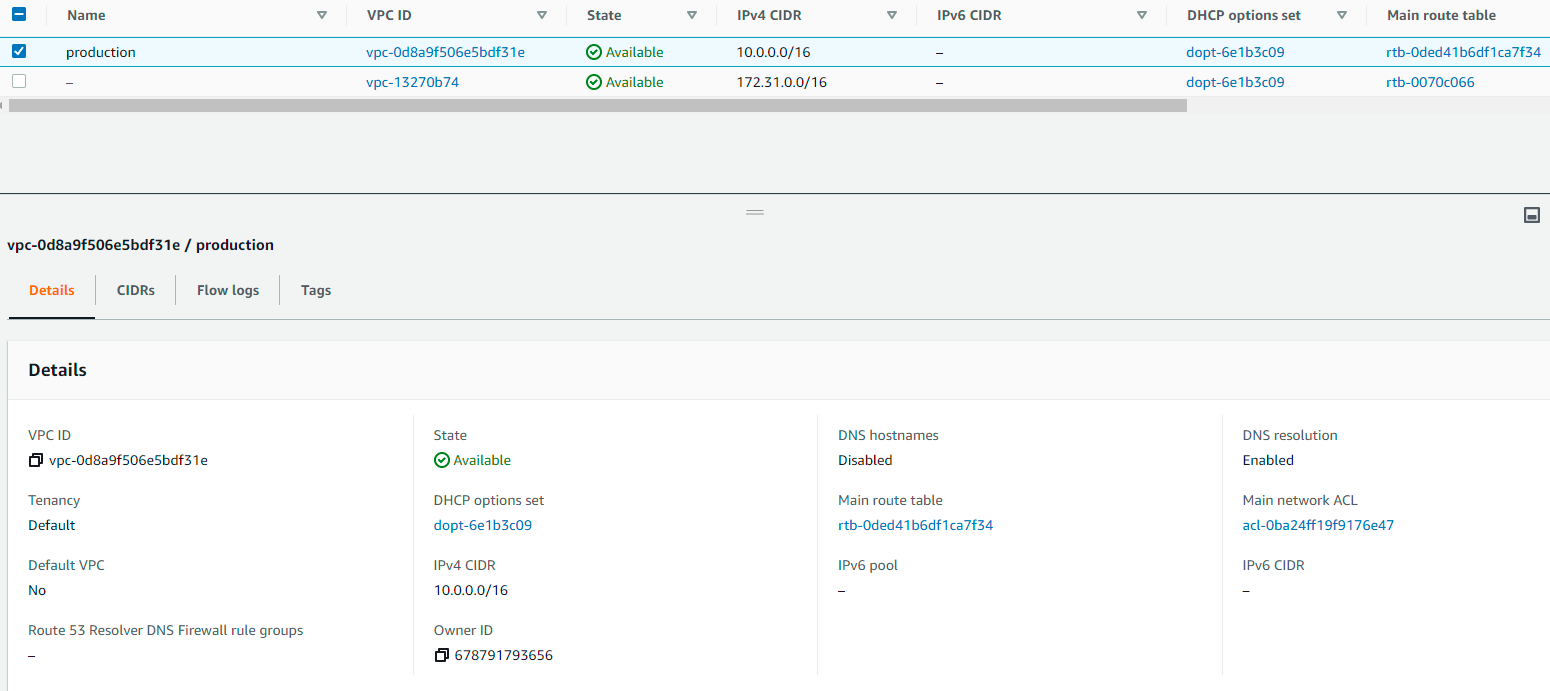

Referencing Resources

You can reference other resources by pointing to the <provider>_<resource_type>.<name>.id

resource "aws_vpc" "first-vpc" {
  cidr_block       = "10.0.0.0/16"

  tags = {
    Name = "production"
  }

}

resource "aws_subnet" "subnet-1" {
 # this is taking from the resource name above. Every resource has id property to access
  vpc_id     = aws_vpc.first-vpc.id
  cidr_block = "10.0.1.0/24"

  tags = {
    Name = "prod-subnet"
  }
}

Terraform Files

terraform init creates a .terraform folder in the directory that contains the configs for the resources.

terraform.tfstate contains the state of terraform so that when we make any modifications/etc., it will be able to check the current status and compare against the code.

Terraform State List

This shows all the resources that was created along with the resource name

terraform state list

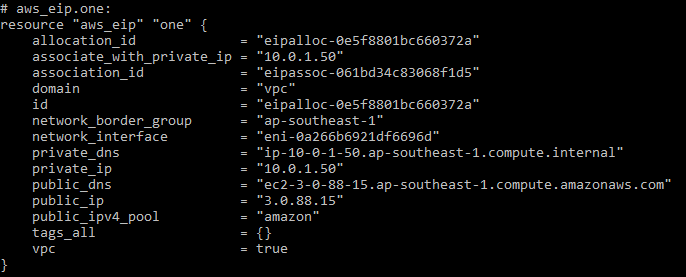

Terraform State Show

This shows the detailed output regarding the state which would normally be stored in the console.

# terraform state show <resource>.<resource_name>
terraform state show aws_eip.one

Terraform Output

This will print out the details and prints out in the console after terraform refresh. You can only have 1 value per output.

# output "<output_key_name>" {
#   value = <resource_type>.<resource_name>.<property>
# }

output "server_public_ip" {
  value = aws_eip.one.public_ip
}

💡 Be careful when you want to add new outputs and see the outputs. Not a good idea to use terraform apply as that might make changes on production side.

Target Resources

This will only apply/destroy changes to a specific resource instead of potentially changing everything in production (e.g. route table, subnet)

# terraform destroy -target <resource>.<resource_name>
# terraform apply -target <resource>.<resource_name>

terraform apply -target aws_eip.one

Variables

This will allow terraform file to reference a variable. Generally passed at runtime.

variable "variable_name" {
  description = ""
  default = "abcd"
  type = String
}

# To access the variable
var.variable_name

Method 1: Input value at Terraform Apply user prompt

If a value is not defined in the variable, at terraform apply/destroy, user will be prompted to submit a value

Method 2: Input value as part of command

Alternatively, we can use -var to specify the value of the variable during terraform apply

terraform apply -var "variable_name=abcd"

Method 3: Input value at .tfvars file

We can create a .tfvars file to store the values of the variables. E.g. example.tfvars

variable_name = "abcd"

Run the main.tf file referencing the file via -var-file

terraform apply -var-file example.tfvars
