Setup

1. git clone the repo
2. Install Docker
3. Check if docker compose comes installed with Docker by running docker compose version
4. Install docker compose
5. Run the docker componse

git clone https://github.com/jkwd/oltp_vs_olap.git
cd oltp_vs_olap
docker compose version
docker compose up

Data Source

We are using the TPC-H data which is a decision support benchmark. It consists of a suite of business-oriented ad hoc queries and concurrent data modifications.

Experiment

We are going to benchmark the performance of an Online Transaction Processing (OLTP) database vs an Online analytical processing (OLAP) database on business-oriented query performance as well as transactional performance:

1. business-oriented ad hoc query by TPC-H
2. INSERT N records

The OLTP database we are using for the experiment is a Postgres database. The OLAP database we are using is DuckDB.

Hypothesis

The hypothesis is that the OLTP database will perform better for transactional operations such as INSERT/UPDATE/DELETE while the OLAP database will perform better for the business-oriented ad hoc query.

Row vs Column oriented Storage

Row oriented storage

In a row-oriented storage, each row in a table is stored sequentially on the disk.

Given the example table above, a row oriented storage will be stored as:

1 Alice USA | 2 Bob Germany | 3 Charlie Australia | 4 David Japan

Each | represents the separation of a block and each row in the table is stored within the block.

This makes the row oriented storage good for transactional use cases, which mainly focuses on INSERT/READ/UPDATE/DELETE of a single record, where if you need to update Bob’s Country from Germany to Italy, you can look for the specific block about Bob and update the value. This can be achieved by creating an index of the address of each block which then allows us to directly access the block that is needed.

However, analytics queries will be poor as the column we need will be spread across the blocks. E.g. If we want to know the number of people in each country, we technically only need the Country column to count. This results in a full table scan just to get the results we want.

Column oriented storage

In a column-oriented storage, each row in a table is stored sequentially on the disk.

Given the example table above, a column oriented storage will be stored as:

1 2 3 4 | Alice Bob Charlie David | USA Germany Australia Japan

This makes an column oriented storage good for analytical queries. Going back to the previous example on wanting to know the number of people in each country, we just need to read 1 block of data which is the Country block and do our counting from there. Much lesser data is scanned and returned for the query.

On the other hand, column oriented storage is poor for transactional processing which usually does an operation on 1 row. For example, if you wanted to add a row of data, each value from the new row has to be added to the correct block of the existing database. This requires accessing all the blocks. Column oriented storage will prefer doing operations in bulk (e.g. bulk insert/update).

Result

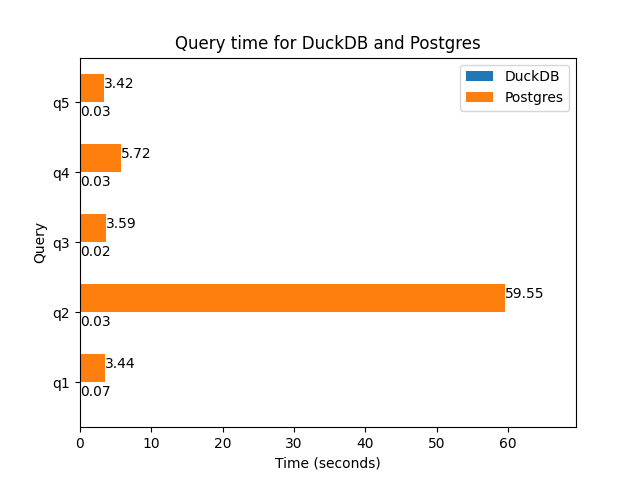

Query performance

DuckDB executed all the queries in less than a second. Postgres on the other hand took at least 3 seconds for the query execution to complete. In fact 1 of the query took longer than 50 seconds!

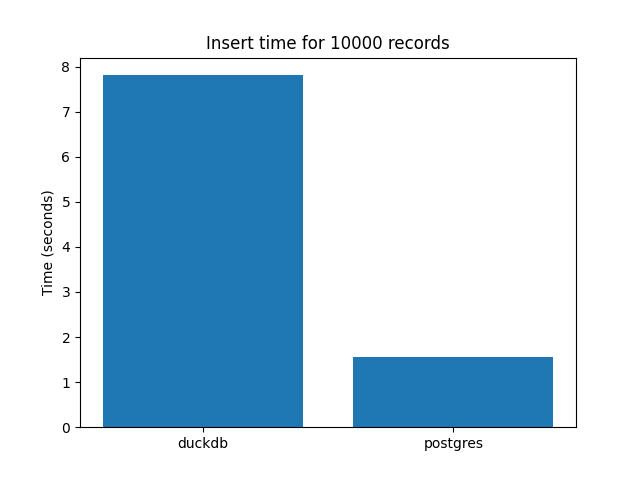

INSERT performance

Postgres is about 4X faster when inserting records as compared to DuckDB.
