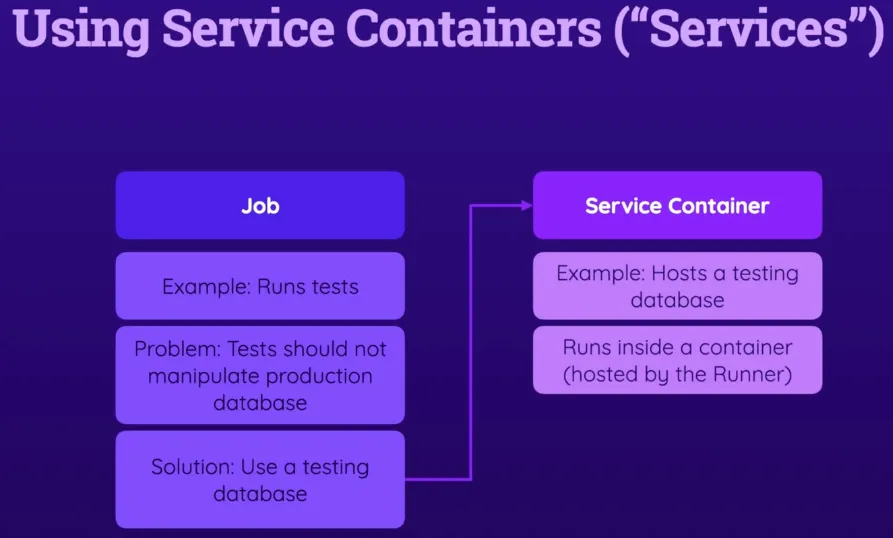

- Service Containers
  - Using Service with Container
  - Using Service without container
Custom Actions

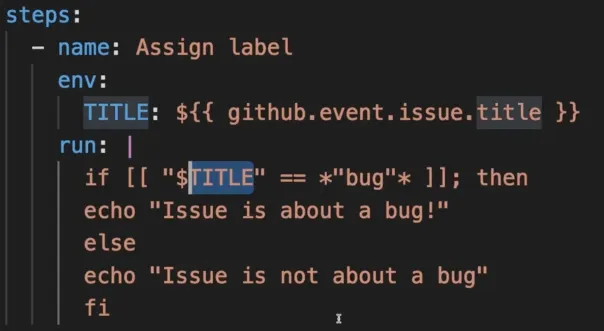

Security of gh actions

Example

name: Deploy Workflow
on:
  workflow_dispatch:
  pull_request:
    types:
      - opened
      - edited
    branches:
      - main
      - 'dev-*' # * allows anything other then '/' E.g. dev-new dev-another
      - 'feat/**' #** allows for more '/'. E.g. feat/new #feat/new/button
  push:
    branches:
      - main
      - 'dev-*' # * allows anything other then '/' E.g. dev-new dev-another
      - 'feat/**' #** allows for more '/'. E.g. feat/new #feat/new/button
    paths-ignore:
      - '.github/workflows/*'
env:
  WORKFLOW_ENV_1: gha-demo # Workflow level
jobs:
  lint:
    runs-on: ubuntu-latest
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Cache dependencies
        id: cache
        uses: actions/cache@v3
        with:
          path: node_modules
          key: deps-node-modules-$
      - name: Install dependencies
        if: steps.cache.outputs.cache-hit != 'true'
        run: npm ci
      - name: Lint code
        run: npm run lint
  test:
    # Job level environment
    env:
      JOB_ENV_1:
      JOB_ENV_1:
      JOB_ENV_1:
    runs-on: ubuntu-latest
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Cache dependencies
        id: cache
        uses: actions/cache@v3
        with:
          path: node_modules
          key: deps-node-modules-$
      - name: Install dependencies
        if: steps.cache.outputs.cache-hit != 'true'
        run: npm ci
      - name: Test code
        id: run-tests
        run: npm run test
      - name: Upload test report
        if: failure() && steps.run-tests.outcome == 'failure'
        uses: actions/upload-artifact@v3
        with:
          name: test-report
          path: test.json
  build:
    needs: test
    runs-on: ubuntu-latest
    outputs:
      script-file: $
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Cache dependencies
        id: cache
        uses: actions/cache@v3
        with:
          path: node_modules
          key: deps-node-modules-$
      - name: Install dependencies
        if: steps.cache.outputs.cache-hit != 'true'
        run: npm ci
      - name: Build website
        run: npm run build
      - name: Publish JS filename
        id: publish
        run: find dist/assets/*.js -type f -execdir echo 'script={}' >> $GITHUB_OUTPUT ';'
      - name: Upload artifacts
        uses: actions/upload-artifact@v3
        with:
          name: dist-files
          path: dist
  deploy:
    needs: build
    runs-on: ubuntu-latest
    steps:
      - name: Get build artifacts
        uses: actions/download-artifact@v3
        with:
          name: dist-files
      - name: Output contents
        run: ls
      - name: Output filename
        run: echo "$"
      - name: Deploy
        run: echo "Deploying..."
  report:
    needs: [lint, deploy] # To force the report job to run last
    if: failure()
    runs-on: ubuntu-latest
    steps:
      - name: Output info
        run: |
          echo "something went wrong..."
          echo "$"

💡 YML file needs to be stored in .github/workflows directory

Workflow

Requires the name of the workflow
Requires the on to listen to events to trigger the workflow

Event Listeners

workflow_dispatch
- manual trigger
pull_request
- requires types - has some default types if not specified
- Allows for branches/path targetted
push
- Allows for branches/path targetted

💡 branches and paths have the compliment version (e.g. branch-ignore/path-ignore). Event Listeners operate on an OR condition within the branch/path and AND condition betwenn branch/path

Jobs

jobs:
  build:
    needs: test
    runs-on: ubuntu-latest
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Install dependencies
        run: npm ci
      - name: Build website
        run: npm run build

Requres the runs-on to specify the type of machine the steps will run on
needs is used to specify the upstream job dependency (e.g. build job depends on test)

Steps

steps:
  - name: Get code
    uses: actions/checkout@v3

  - name: Install NodeJS
    uses: actions/setup-node@v3
    with:
      node-version: 18

  - name: Install dependencies
    run: npm ci

run - anything eg bash commands etc
uses- uses existing github actions packages to help
- with- additional parameters to be used with the actions package

Skip Workflow

git commit -m "Add comment [skip ci]"
- To not make workflow run for this particular push

Job Artifacts & Outputs

Artifacts

Upload artifacts

Output from the workflow, e.g. log files or app binaries from build

steps:
  - name: Get code
    uses: actions/checkout@v3
  - name: Install dependencies
    run: npm ci
  - name: Build website
    run: npm run build
  - name: Upload artifacts
    uses: actions/upload-artifact@v3
    with:
      name: dist-files
      path: |
        dist
        package.json

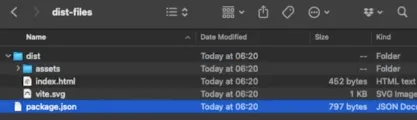

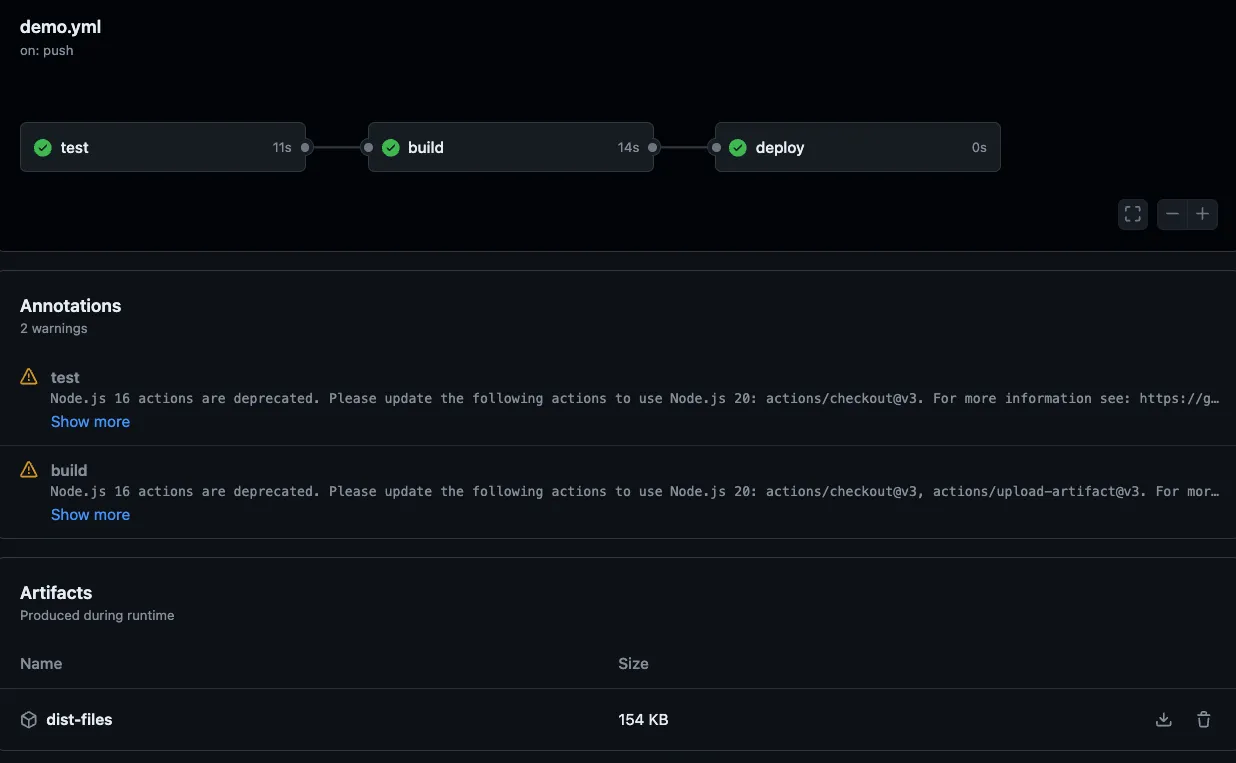

Artifacts shown in github actions workflow
- Contains both dist and package.json as specified above

Downloading artifacts

steps:
  - name: Get build artifacts
    uses: actions/download-artifact@v3
    with:
      name: dist-files
  - name: Output contents
    run: ls

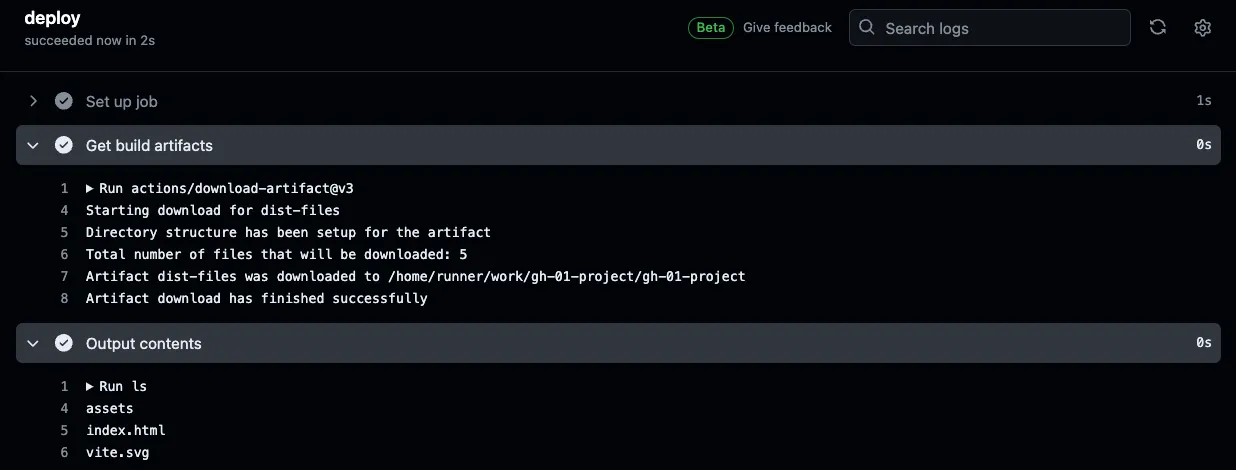

Files are already unpacked

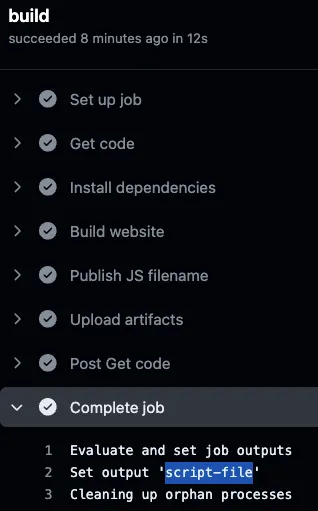

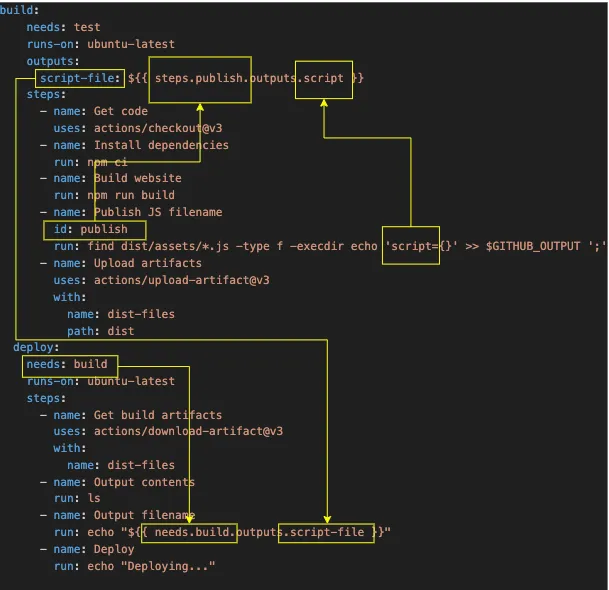

Job Outputs

Different from artifacts
- Typically used for reusing value in downstream jobs (e.g. name of file)

build:
    needs: test
    runs-on: ubuntu-latest
    outputs:
      script-file: $
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Install dependencies
        run: npm ci
      - name: Build website
        run: npm run build
      - name: Publish JS filename
        id: publish
        run: find dist/assets/*.js -type f -execdir echo 'script={}' >> $GITHUB_OUTPUT ';'
      - name: Upload artifacts
        uses: actions/upload-artifact@v3
        with:
          name: dist-files
          path: dist
  deploy:
    needs: build
    runs-on: ubuntu-latest
    steps:
      - name: Get build artifacts
        uses: actions/download-artifact@v3
        with:
          name: dist-files
      - name: Output contents
        run: ls
      - name: Output filename
        run: echo "$"
      - name: Deploy
        run: echo "Deploying..."

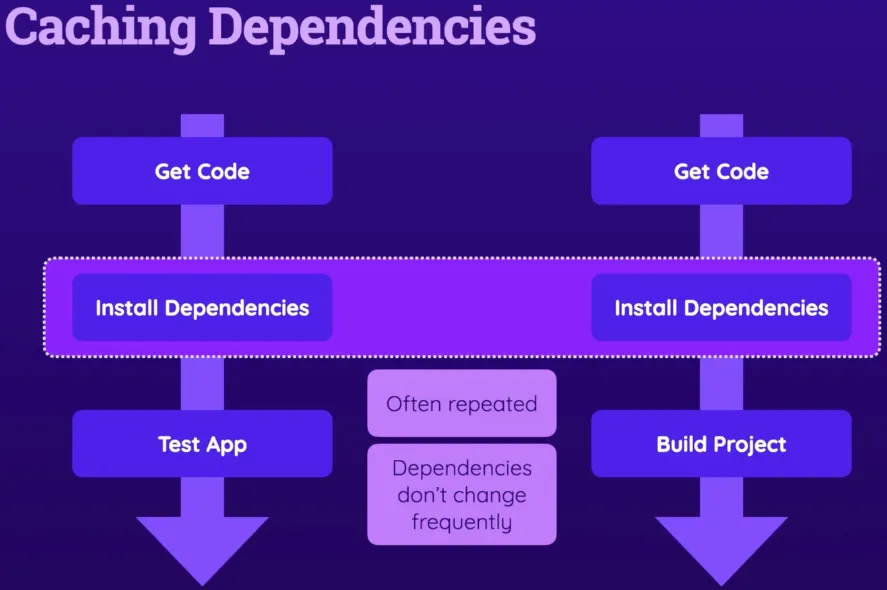

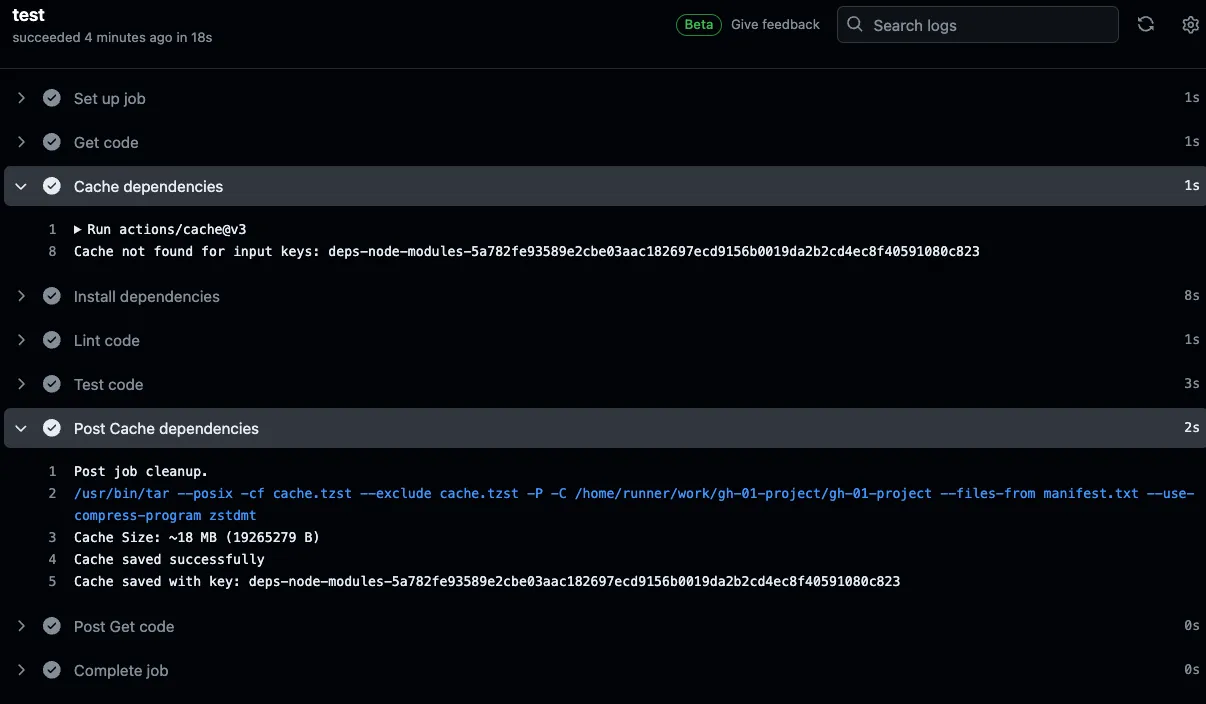

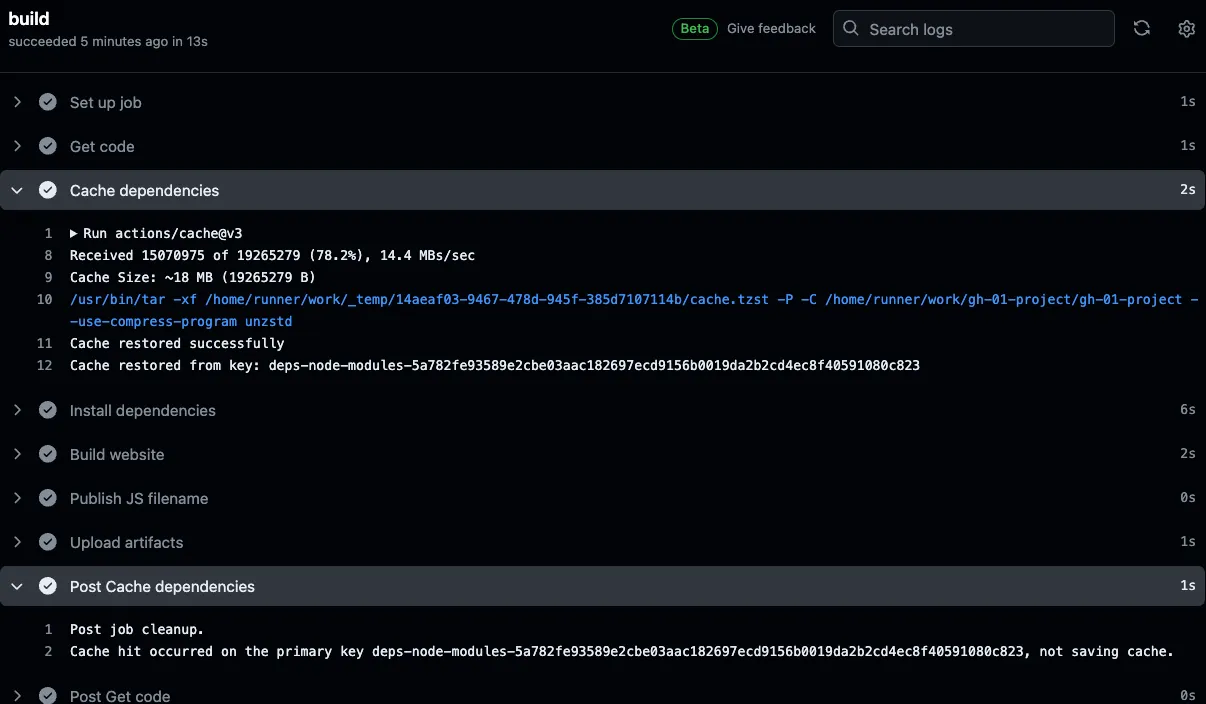

Dependency Caching

Cache repeated steps to reduce time of workflow

https://github.com/actions/cache/blob/main/examples.md#node—npm

Looks for the file hash of the dependency installation details (In js is package-lock.json)
- To be used in all the repeated palces with the same key

test:
  # Do something above
  - name: Cache dependencies
    uses: actions/cache@v3
    with:
      path: ~/.npm
      key: deps-node-modules-$
  - name: Install dependencies
    run: npm ci
  - ...
build:
  # Do something above
  - name: Cache dependencies
    uses: actions/cache@v3
    with:
      path: ~/.npm
      key: deps-node-modules-$
  - name: Install dependencies
    run: npm ci
  - ...

Environment Variables

name: Deployment
on:
  push:
    branches:
      - main
      - dev
env:
  MONGODB_DB_NAME: gha-demo # Workflow level ENV_VAR
jobs:
  test:
    # Job level ENV_VAR
    env:
      MONGODB_CLUSTER_ADDRESS: cluster_1.mongodb.net
      MONGODB_USERNAME: admin
      MONGODB_PASSWORD: admin
      PORT: 8080
    runs-on: ubuntu-latest
    steps:
      # Do something above
      # Reference the job level env var PORT
      - name: Run server
        run: npm start & npx wait-on http://127.0.0.1:$PORT
  deploy:
    # Previous Job ENV_VARs not accessible

Secrets

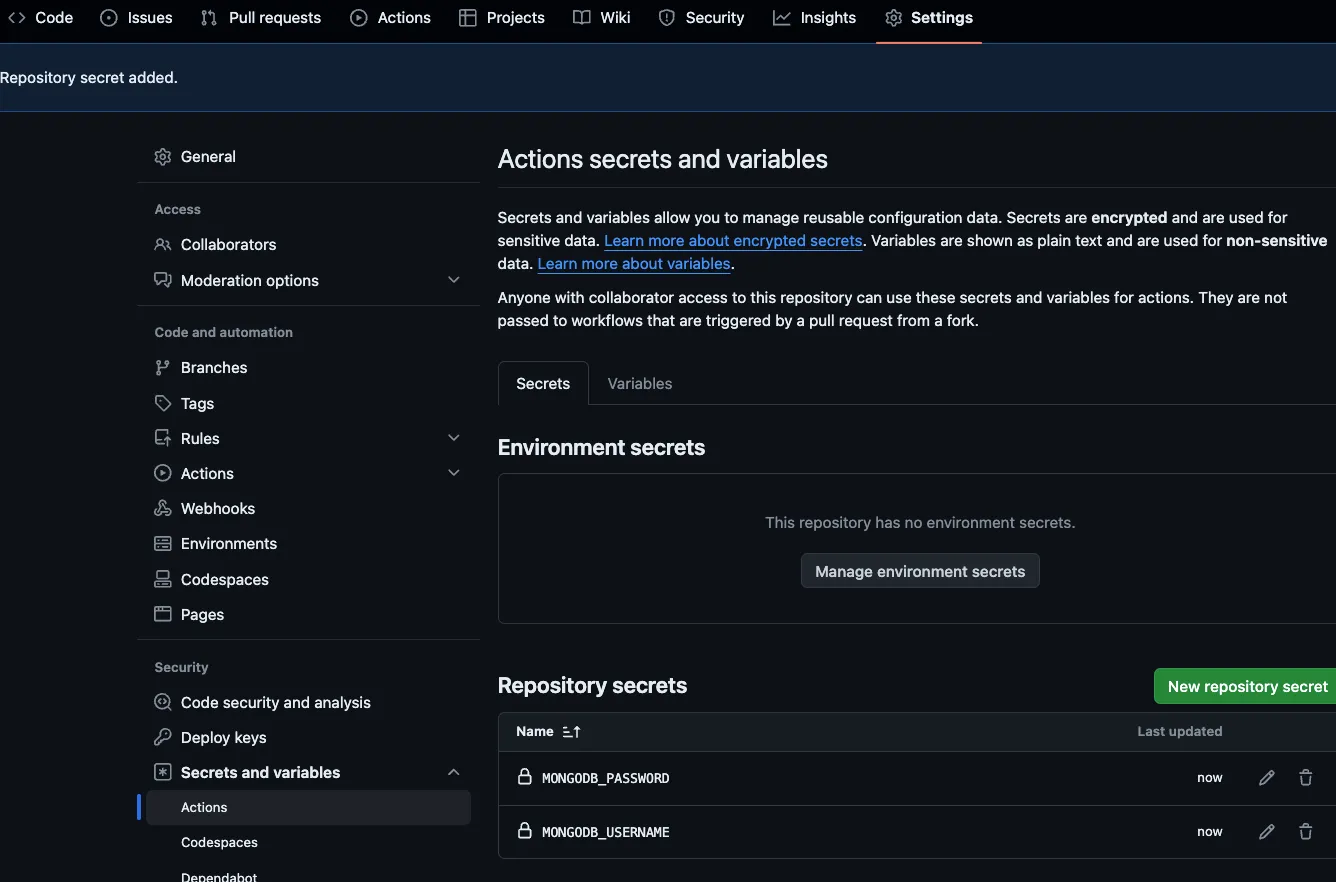

Repository Secrets

To prevent pushing username/passwords into the .github/workflows/ code
- Create via Repository secrets

name: Deployment
on:
  push:
    branches:
      - main
      - dev
env:
  MONGODB_DB_NAME: gha-demo # Workflow level ENV_VAR
jobs:
  test:
    # Job level ENV_VAR
    env:
      MONGODB_CLUSTER_ADDRESS: cluster_1.mongodb.net
      MONGODB_USERNAME: $
      MONGODB_PASSWORD: $
      PORT: 8080
    runs-on: ubuntu-latest
    steps:
      # Do something above
      # Reference the job level env var PORT
      - name: Run server
        run: npm start & npx wait-on http://127.0.0.1:$PORT
  deploy:
    # Previous Job ENV_VARs not accessible

💡 When echo the environment variable with secrets, it’ll hide the info and print ***

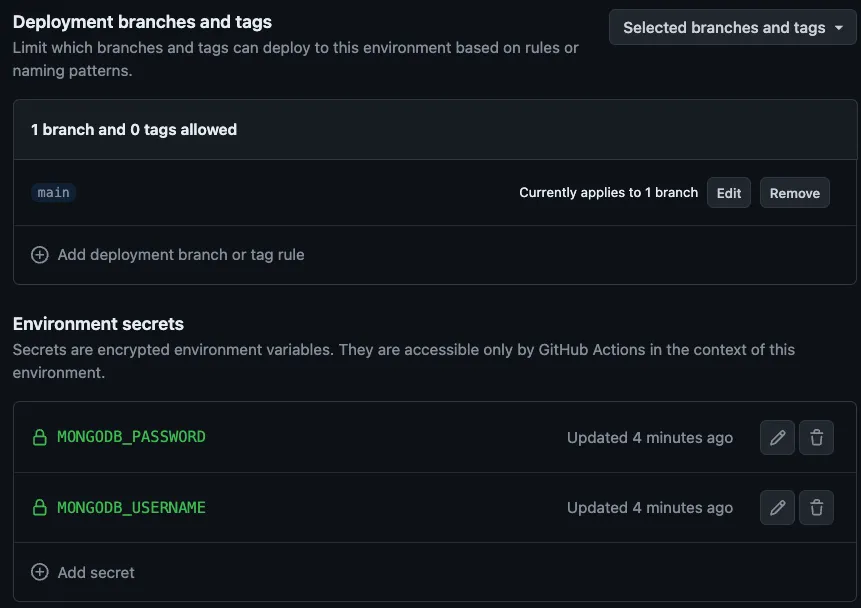

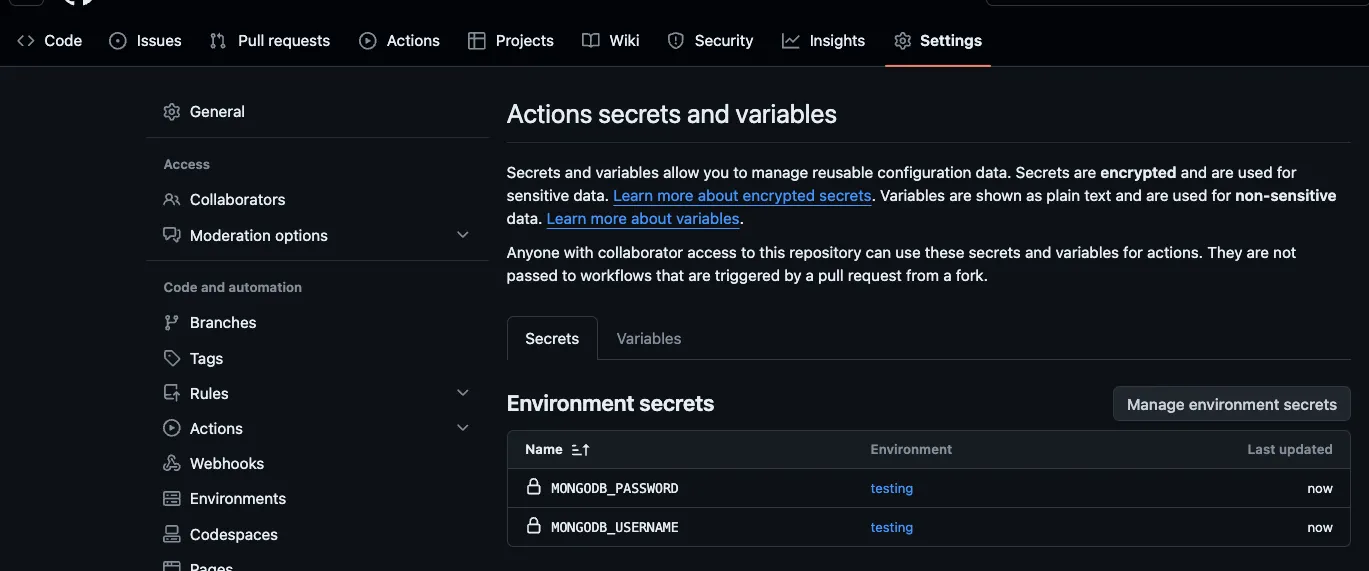

Environment Secrets

Allow you to have different secret values for different environment
- Testing
- Production
Allows secrets to be used on certain branch/tag logic

name: Deployment
on:
  push:
    branches:
      - main
      - dev
env:
  MONGODB_DB_NAME: gha-demo # Workflow level ENV_VAR
jobs:
  test:
    environment: testing # To use the environment secrets named 'testing'
    # Job level ENV_VAR
    env:
      MONGODB_CLUSTER_ADDRESS: cluster_1.mongodb.net
      MONGODB_USERNAME: $
      MONGODB_PASSWORD: $
      PORT: 8080
    runs-on: ubuntu-latest
    steps:
      # Do something above
      # Reference the job level env var PORT
      - name: Run server
        run: npm start & npx wait-on http://127.0.0.1:$PORT
  deploy:
    # Previous Job ENV_VARs not accessible

Execution flow

Step level if condition

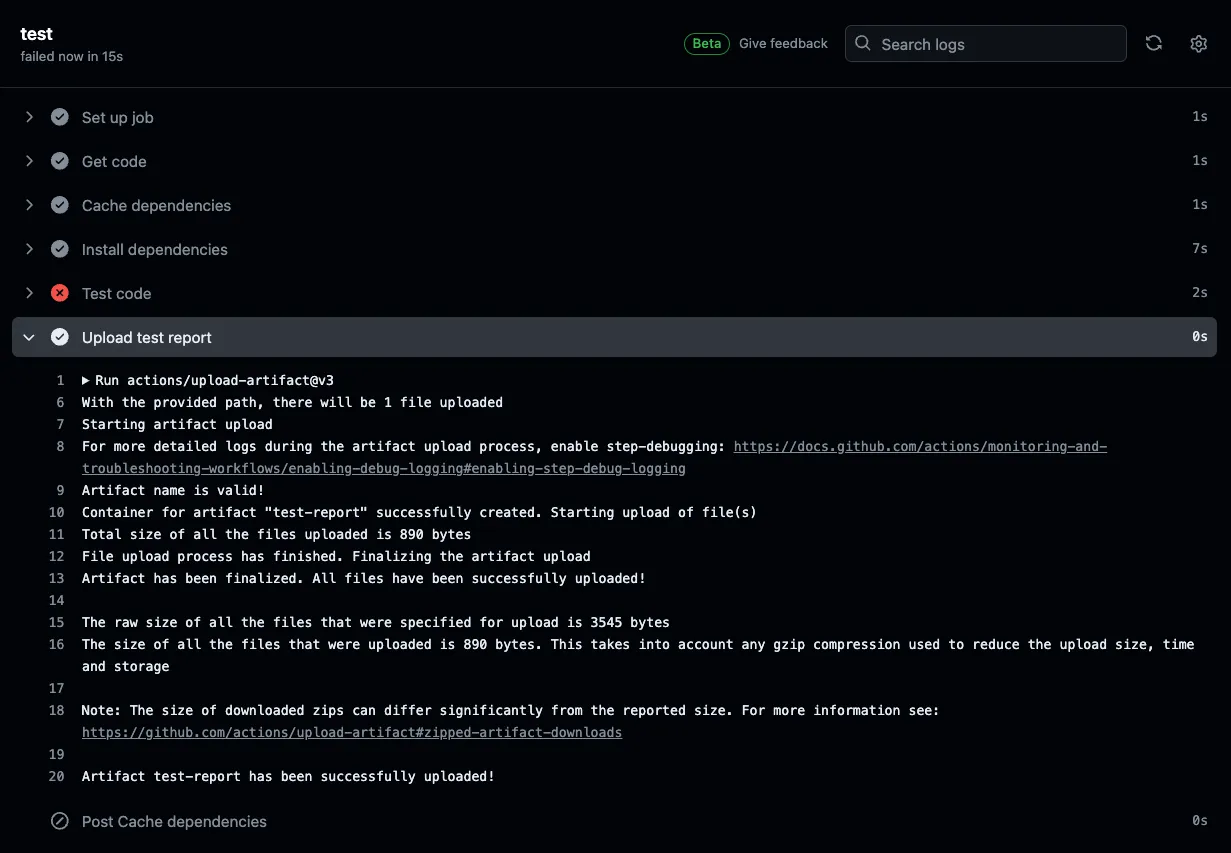

Failure example

- name: Test code
  id: run-tests
  run: npm run test
- name: Upload test report
  if: failure() && steps.run-tests.outcome == 'failure'
  uses: actions/upload-artifact@v3
  with:
    name: test-report
    path: test.json

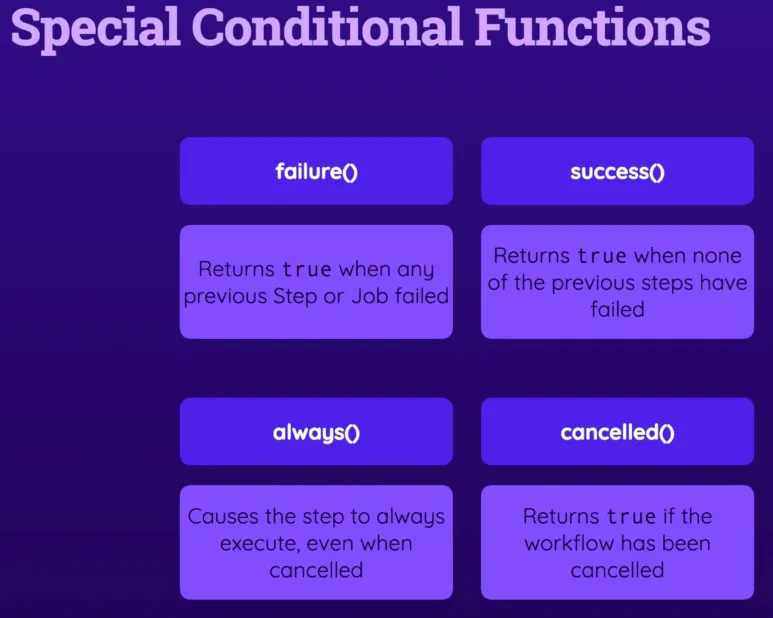

💡 failure() is required in order to run the Upload test report step

Cache example

If node_modules exist then do not need to install dependencies

- name: Cache dependencies
  id: cache
  uses: actions/cache@v3
  with:
    path: node_modules
    key: deps-node-modules-$
- name: Install dependencies
  if: steps.cache.outputs.cache-hit != 'true'
  run: npm ci

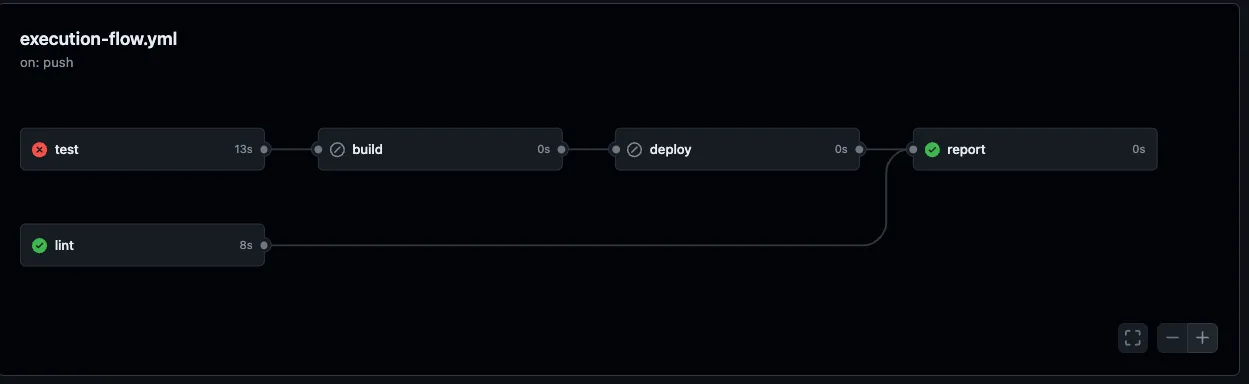

Job level if condition

report:
  needs: [lint, deploy] # To force the report job to run last
  if: failure()
  runs-on: ubuntu-latest
  steps:
    - name: Output info
      run: |
        echo "something went wrong..."
        echo "$"

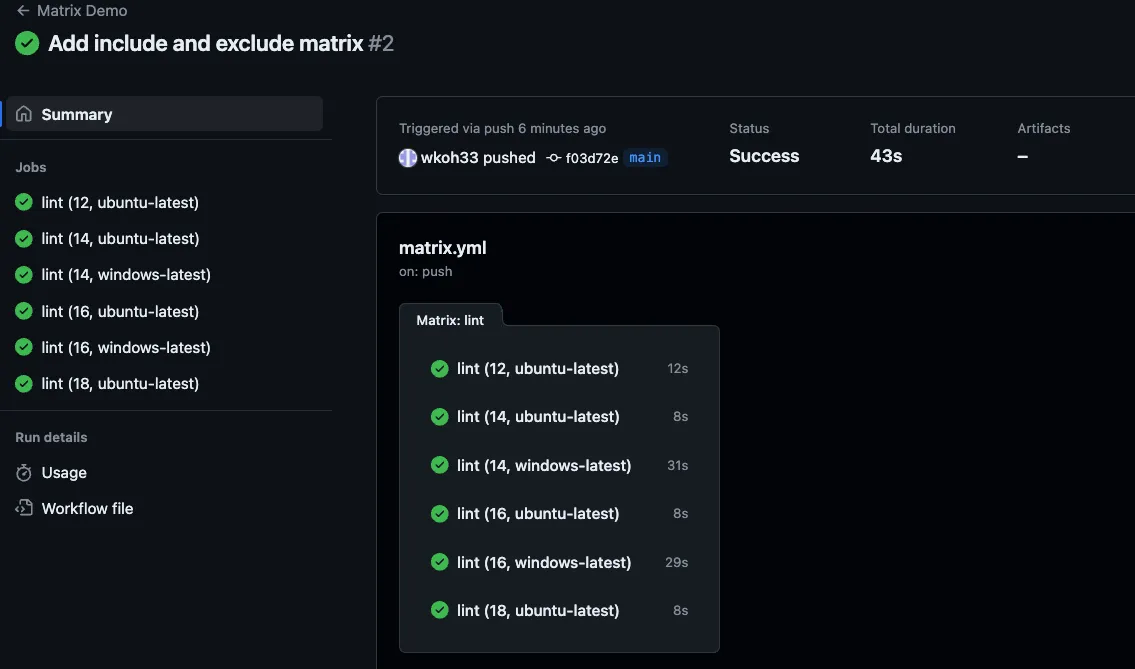

Matrix strategy

Allows to run same job with multiple different configurations

name: Matrix Demo
on:
  push:
    branches:
      - main

jobs:
  lint:
    continue-on-erro: true # To let the rest of the jobs run if 1 fails
    strategy:
      matrix:
        # Create 3 x 2 combinations
        node-version: [12, 14, 16]
        operating-system: [ubuntu-latest, windows-latest]
        # Exclude combination in the matrix
        exclude:
          - node-version: 12
            operating-system: windows-latest
        # Add single combination not part of matrix
        include:
          - node-version: 18
            operating-system: ubuntu-latest
    runs-on: $
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Install NodeJS
        uses: actions/setup-node@v3
        with:
          node-version: $
      - name: Cache dependencies
        id: cache
        uses: actions/cache@v3
        with:
          path: node_modules
          key: deps-node-modules-$
      - name: Install dependencies
        if: steps.cache.outputs.cache-hit != 'true'
        run: npm ci
      - name: Lint code
        run: npm run lint

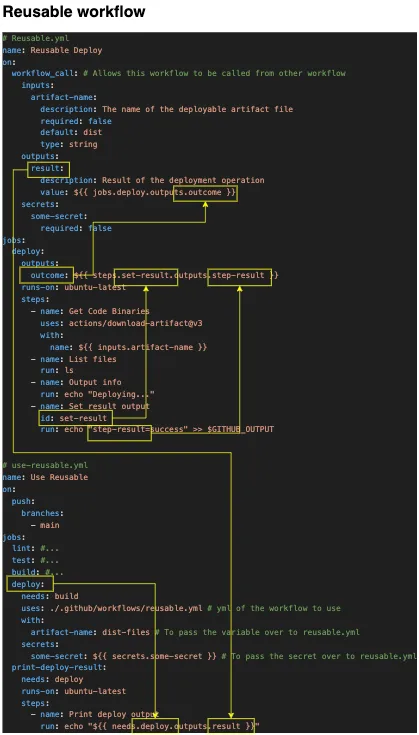

Reusable workflow

Create a workflow that can be referenced and used from another workflow
- Allows inputs to make it dynamic
- Allows passing info back to the wofkflow calling it

name: Reusable Deploy
on:
  workflow_call: # Allows this workflow to be called from other workflow
    inputs:
      artifact-name:
        description: The name of the deployable artifact file
        required: false
        default: dist
        type: string
    outputs:
      result:
        description: Result of the deployment operation
        value: $
    secrets:
      some-secret:
        required: false
jobs:
  deploy:
    outputs:
      outcome: $
    runs-on: ubuntu-latest
    steps:
      - name: Get Code Binaries
        uses: actions/download-artifact@v3
        with:
          name: $
      - name: List files
        run: ls
      - name: Output info
        run: echo "Deploying..."
      - name: Set result output
        id: set-result
        run: echo "step-result=success" >> $GITHUB_OUTPUT

💡 on needs to be workflow_call

name: Use Reusable
on:
  push:
    branches:
      - main
jobs:
  lint: ...
  test: ...
  build: ...
  deploy:
    needs: build
    uses: ./.github/workflows/reusable.yml # yml of the workflow to use
    with:
      artifact-name: dist-files # To pass the variable over to reusable.yml
    secrets:
      some-secret: $
  print-deploy-result:
    needs: deploy
    runs-on: ubuntu-latest
    steps:
      - name: Print deploy output
        run: echo "$"

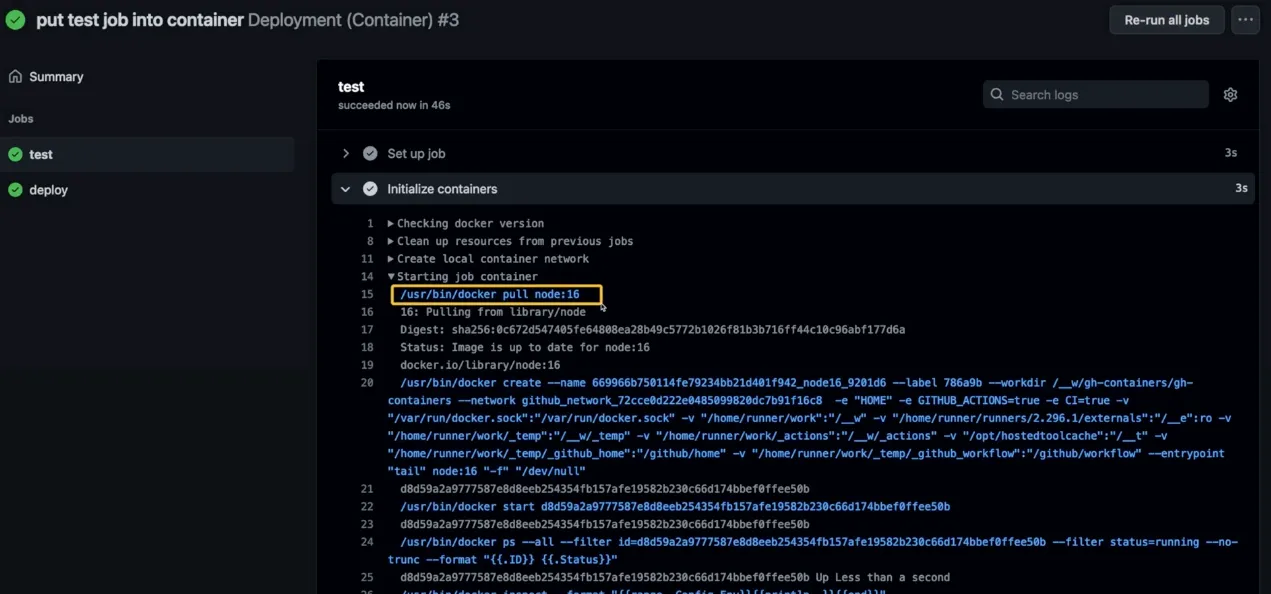

Run Jobs on docker containers

jobs:
  test:
    environment: testing
    runs-on: ubuntu-latest
    container: # DEFINE HERE. HOSTED ON ubuntu-latest
      image: node:16
      env: # THIS IS ENV_VAR FOR IMAGE AND NOT STEPS
        VAR_1: val_1
    env:
      MONGODB_CONNECTION_PROTOCOL: mongodb+srv
      MONGODB_CLUSTER_ADDRESS: cluster0.ntrwp.mongodb.net
      MONGODB_USERNAME: $
      MONGODB_PASSWORD: $
      PORT: 8080
    steps:
      - ...
      - ...

Service Containers

To host a isolated testing db inside the github action job instead of connecting to the prod db

Using Service with Container

Create a mongodb service inside node:16 container with network name as mongodb-service

jobs:
  test:
    environment: testing
    runs-on: ubuntu-latest
    container: # DEFINE HERE. HOSTED ON ubuntu-latest
      image: node:16
      env: # THIS IS ENV_VAR FOR IMAGE AND NOT STEPS
        VAR_1: VAL_1
    env:
      MONGODB_CONNECTION_PROTOCOL: mongodb
      MONGODB_CLUSTER_ADDRESS: mongodb-service
      MONGODB_USERNAME: root # Testing DB details
      MONGODB_PASSWORD: example
      PORT: 8080
    services: # ALWAYS RUN INSIDE OF IMAGES
      mongodb-service: # Testing DB - will be deleted after job ends
        image: mongo
        env:
          MONGO_INITDB_ROOT_USERNAME: root
          MONGO_INITDB_ROOT_PASSWORD: example
      another-service: ...
    steps:
      - ...

💡 If job runs in container, then github actions will handle the networking between the container and service for you. Hence in above example, MONGODB_CLUSTER_ADDRESS can be set to the name of the service mongodb-service

Using Service without container

jobs:
  test:
    environment: testing
    runs-on: ubuntu-latest
    env:
      MONGODB_CONNECTION_PROTOCOL: mongodb
      MONGODB_CLUSTER_ADDRESS: 127.0.0.1:27017
      MONGODB_USERNAME: root # Testing DB details
      MONGODB_PASSWORD: example
      PORT: 8080
    services: # ALWAYS RUN INSIDE OF IMAGES
      mongodb-service: # Testing DB - will be deleted after job ends
        image: mongo
        ports: # Need to open the mongodb port
          - 27017:27017
        env:
          MONGO_INITDB_ROOT_USERNAME: root
          MONGO_INITDB_ROOT_PASSWORD: example
      another-service: ...
    steps:
      - ...

💡 If no containers are used, then the service port will need to be opened and changing the MONGODB_CLUSTER_ADDRESS

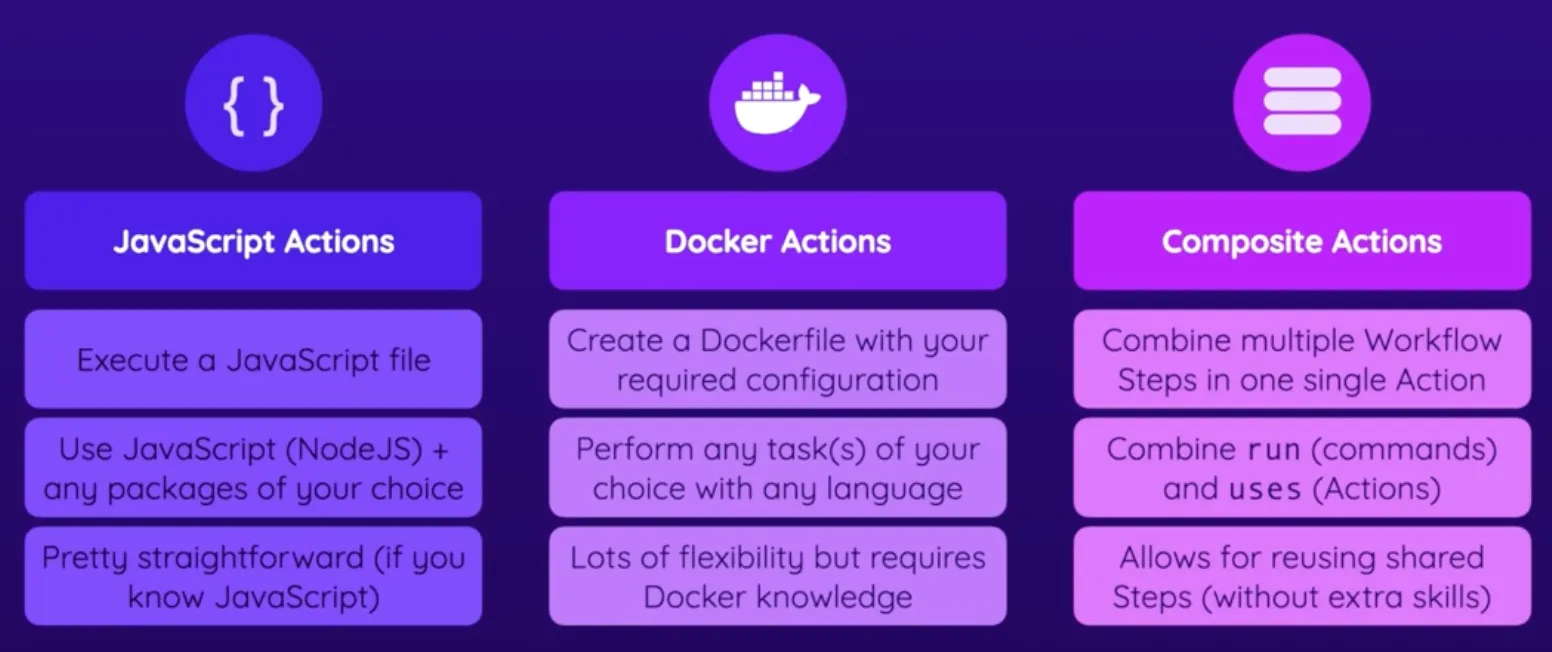

Custom Actions

3 kinds of custom actions

Composite Actions

Stored in

New repository of actions
Locally within .github/<folder_name>/<action_name>/action.yml

Example (Custom Composite Action)

name: "Get & Cache Dependencies"
description: "Get the dependencies (via npm) and cache them."
inputs: # Custom input for the action
  to-cache:
    description: "Whether to cache dependencies or not"
    required: false
    default: "true"
outputs: # Custom output for the action
  used-cache:
    description: "Whether cache was used or not"
    value: $

# runs and using are compulsory
runs:
  using: "composite"
  steps:
    - name: Cache dependencies
      if: inputs.to-cache == 'true'
      id: cache
      uses: actions/cache@v3
      with:
        path: node_modules
        key: deps-node-modules-$
    - name: Install dependencies
      id: install-deps
      if: steps.cache.outputs.cache-hit != 'true' || inputs.to-cache != 'true'
      # shell required if using 'run' key
      run: |
        npm ci
        echo "cache-output=$" >> $GITHUB_OUTPUT
      shell: bash

Example (Using custom Action at workflow yml)

jobs:
  lint:
    runs-on: ubuntu-latest
    steps:
      - name: Get code
        uses: actions/checkout@v3
      - name: Load and cache dependencies
        id: cache-deps
        uses: ./.github/actions/cached-deps #gh-actions will look for action.yml
        with:
          to-cache: "false"
      - name: Output Information
        run: echo "Cached used? $"
      - name: Lint code
        run: npm run lint

JavaScript Actions

Contains action.yml and some_name.js within .github/<folder_name>/<action_name>/ directory
Requires addition npm libraries
- cd to the directory where the action files are located
- npm init -y
  - Requires nodeJS installed in your system
- npm install @actions/core @actions/github @actions/exec

💡 Ensure all files in node_modules in the directory is not gitignored

action.yml

name: "Deploy to AWS S3"
description: "Deploy static website to AWS S3"
inputs:
  bucket:
    description: "S3 bucket name"
    required: true
  bucket-region:
    description: "S3 bucket region"
    required: false
    default: "ap-southeast-1"
  dist-folder:
    description: "Folder containing deployable files."
    required: true
outputs:
  website-url:
    description: "URL of deployed site"
    # NOTE: WE DO NOT HAVE VALUES HERE.
    # HANDLED IN THE JS FILE

runs:
  using: "node16" # Tells gh that this is a JS Action
  main: "main.js" # File the gh action is going to use

main.js

const core = require("@actions/core");
const github = require("@actions/github");
const exec = require("@actions/exec");

function run() {
  core.notice("Hello from custom JavaScript Action");
  // Get input vals
  const bucket = core.getInput("bucket", { required: true });
  const bucketRegion = core.getInput("bucket-region", { required: false });
  const distFolder = core.getInput("dist-folder", { required: true });

  // Upload to s3
  const s3uri = `s3://${bucket}`;
  exec.exec(`aws s3 sync ${distFolder} ${s3uri} --region ${bucketRegion}`);

  // Return URL
  const websiteUrl = `http://${bucket}.s3-website-${bucketRegion}.amazonaws.com`;
  core.setOutput("website-url", websiteUrl);
}

run();

workflow

jobs:
  lint: ...
  test: ...
  build: ...
  deploy:
    needs: build
    runs-on: ubuntu-latest
    steps:
      - name: Get code
        uses: actions/checkout@v3 # REQUIRED for local JS Action
      - name: Get build artifacts
        uses: actions/download-artifact@v3
        with:
          name: dist-files
          path: ./dist
      - name: Output contents
        run: ls
      - name: Deploy site
        id: deploy
        uses: ./.github/actions/deploy-s3-javascript
        env:
          AWS_ACCESS_KEY_ID: $
          AWS_SECRET_ACCESS_KEY: $
        with:
          bucket: jk-gha-custom-hosting
          dist-folder: ./dist
      - name: Output Info
        run: |
          echo 'URL: $'

💡 JS Custom action requires user to do actions/checkout if the action is a local custom action

Docker Action

name: "Deploy to AWS S3 Docker"
description: "Deploy static website to AWS S3 via docker"
inputs:
  bucket:
    description: "S3 bucket name"
    required: true
  bucket-region:
    description: "S3 bucket region"
    required: false
    default: "ap-southeast-1"
  dist-folder:
    description: "Folder containing deployable files."
    required: true
outputs:
  website-url:
    description: "URL of deployed site"

runs:
  using: "docker"
  image: "Dockerfile"

💡 gh generates ENV*VAR for the inputs with prefix INPUT*\*. [SEE BELOW]

bucket = os.environ['INPUT_BUCKET']
bucket_region = os.environ['INPUT_BUCKET-REGION']
dist_folder = os.environ['INPUT_DIST-FOLDER']

💡 outputs are handled by using the print of the language. E.g. python print() [SEE BELOW]

with open(os.environ['GITHUB_OUTPUT'], 'a') as gh_output:
        print(f'website-url={website_url}', file=gh_output)

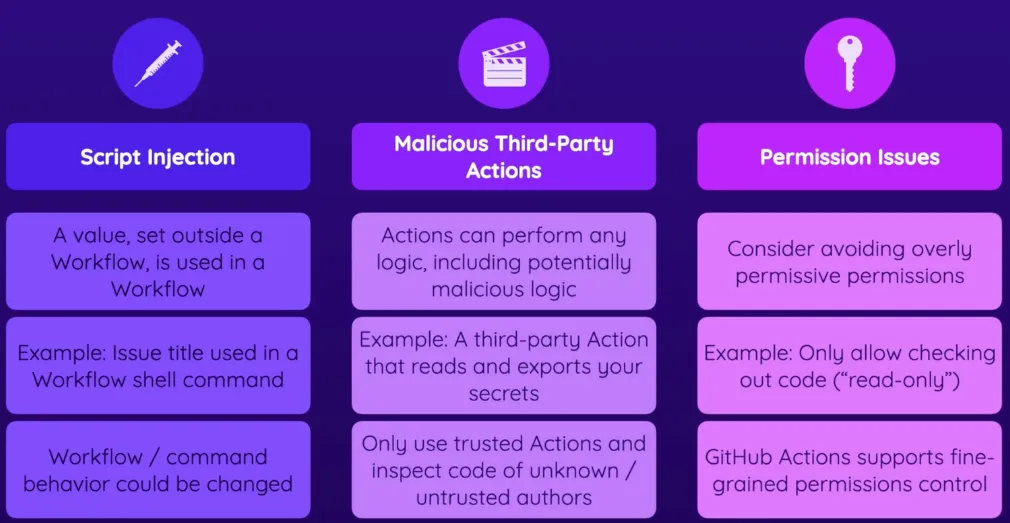

Security of gh actions

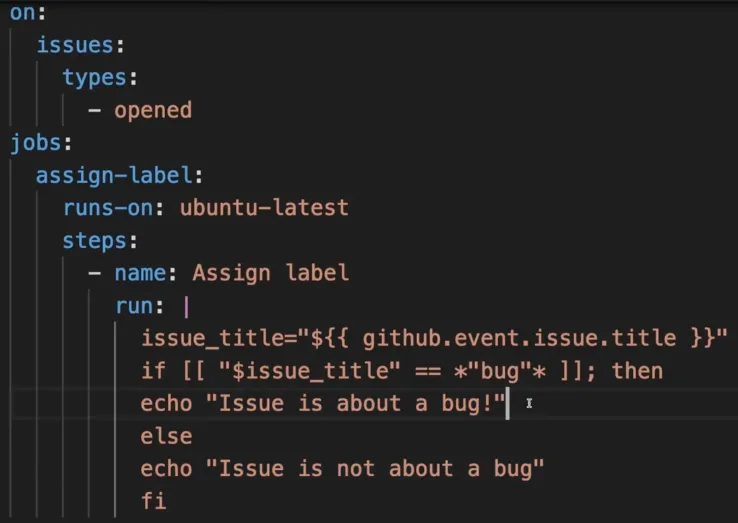

Script Injections

Be careful of assignment of variables in run
- issue_title="$” can lead to script injection by passing in: a”; echo $AWS_ACCESS_KEY_ID - This results in - issue_title="a" - echo $AWS_ACCESS_KEY_ID - which will give the details
- Solve this by using a ENV_VAR instead

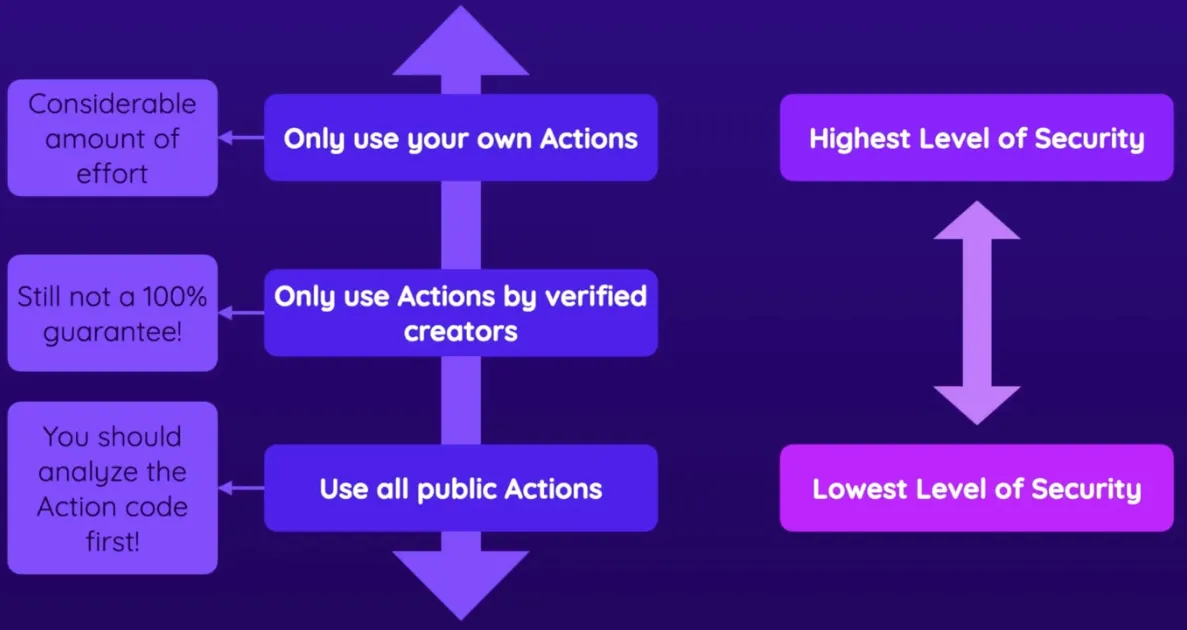

Actions

Permission

name: Label Issues (Permissions Example)
on:
  issues:
    types:
      - opened
jobs:
  assign-label:
    permissions: # RESTRICT PERMISSION. DEFAULT: FULL ACCESS ON EVERYTHING.
      issues: write
    runs-on: ubuntu-latest
    steps:
      - name: Assign label
        if: contains(github.event.issue.title, 'bug')
        run: |
          curl -X POST \
          --url https://api.github.com/repos/$/issues/$/labels \
          -H 'authorization: Bearer $' \
          -H 'content-type: application/json' \
          -d '{
              "labels": ["bug"]
            }' \
          --fail

secrets.GITHUB_TOKEN

Token generated by github for the github API

Gets revoked by the end of the job
Permissions set in the yml will be the permission assigned to the GITHUB_TOKEN.

Managing more permissions

Repository → Setting → Action → General

Managing Secret Keys for 3rd-party platforms

- name: Deploy site
  id: deploy
  uses: ./.github/actions/deploy-s3-javascript
  env:
    AWS_ACCESS_KEY_ID: $
    AWS_SECRET_ACCESS_KEY: $

Information like AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY are saved in the github action secrets
- But still vulnerable to script injections
OpenID Connect can help to make it more secure
- Dynamically gets credentials
- Requires setting up AWS IAM Role for this
- Uses aws-actions/configure-aws-credentials
- Do not need the env anymore

job:
  deploy:
    permissions:
      id-token: write # REQUIRED as default GITHUB_TOKEN is set to None for this
      contents: read
    ...
    steps:
      # Do something above
      - name: Get AWS Permissions
        uses: aws-actions/configure-aws-credentials@v1
        with:
          role-to-assume: arn:aws:iam::...
          aws-region: ...
      ...
